There are two methods of forming stone grinding pads: hot pressing and cold pressing. Cold pressing is rarely used. The hot pressing method refers to heating the abrasive tool at the same time during the pressing process, so that the binder melts rapidly and is polycondensed and hardened or semi-hardened within the pressure holding time.
The process is as follows:
1. Preparation of the steel core.
2. Abrasive assembly, Coat the contact part between the abrasive tool and the molding material with a release agent, such as molybdenum disulfide, zinc stearate, soap and other substances that can play a lubricating role to prevent the grinding wheel from being damaged by the mold wall, it is then mounted on the turntable together with the substrate.
3. Press the non-diamond layer, drop the non-diamond layer material into the mold while the mold is rotating, scrape and compact, put on the pressing ring for cold pressing.
4. The diamond layer is hot pressed, the diamond lamination ring is taken out and cleaned, the contact surface between the non-diamond layer and the diamond layer is roughened, coated with a layer of epoxy resin adhesive, the diamond layer abrasive tool is reassembled, and then the material is fed and scraped. , press ring and shim, placed on a hot press for hot pressing.
5. After unloading the mold, after the hot pressing is completed, take the abrasive tool out of the hot press for rapid cooling, and remove the mold sleeve, mandrel, pressure ring, etc.
1. Product details

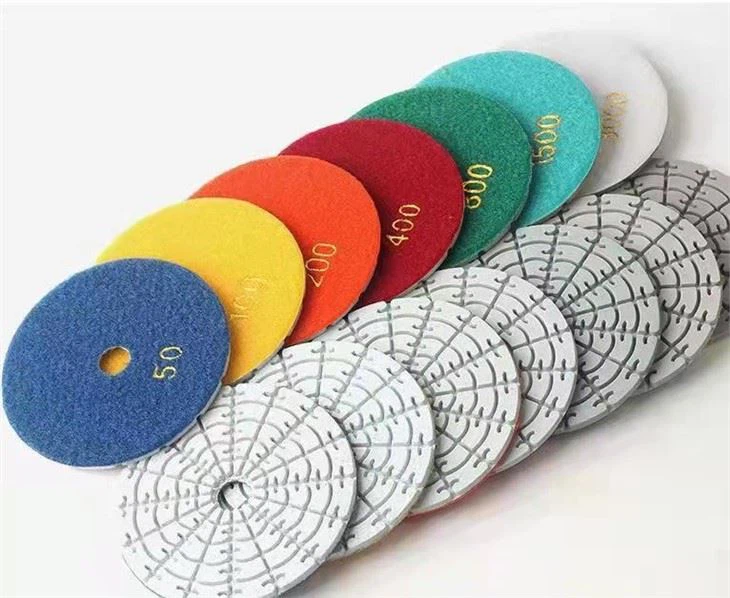

Application: Stone surface polishing and buffing
Original: Quanzhou, China
Certification: ISO9001,CE, SGS and etc.
Price: Negotiable
Material: steel or aluminum base, diamond powder and alloy powder
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
Market: Southeast Asia/Middle East/ Africa/South America/Europe/North America
Warranty: 1 year
MOQ: 1set
2. Features of stone grinding pads :
1. High-grade diamonds used to maximize performance
2. Unique resin binder, not easy to dye.
3. High polishing speed and gloss
3. Application
4. FAQ:
Q1:Are you a factory or trading company?
A1:We are a factory. If you have time, welcome to visit our factory.
Q2. How is your quality?
A2. We have a very serious control system. We guarantee the high performance of our products.
Q3. If we need technical support, can you offer us?
A3. Yes, we have an experienced team, offering our customers specific advice by our product management staff, engineers and technicians.
5. Packing, Storage, Handling and Transportation
6. After-sales service team:
7. Technical Team:
