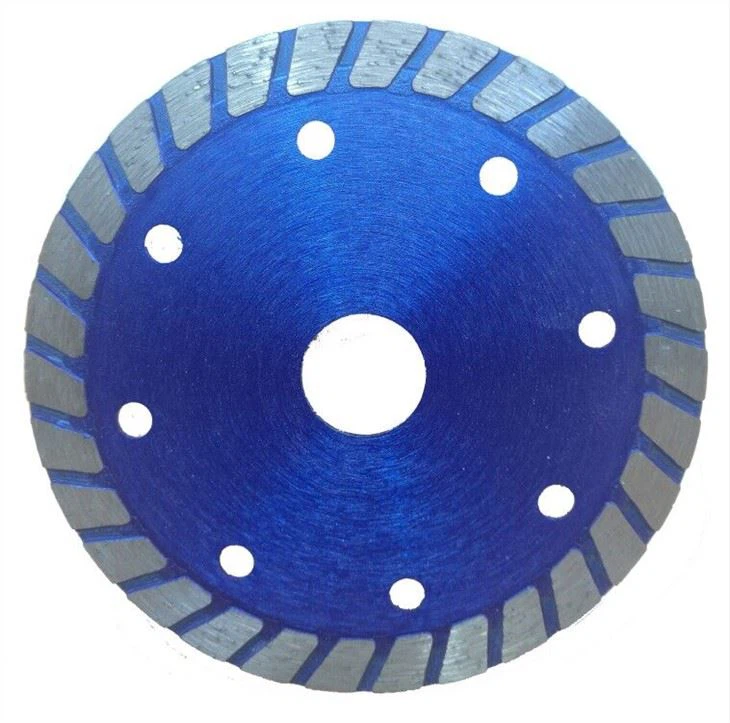

Diamond Turbo Blade

Diamond Turbo Blade is a cutting tool, which is mainly divided into two parts: a base head and a cutter head. It is widely used in the processing of hard and brittle materials such as concrete, refractory materials, stone, and ceramics. Compared with ordinary saw blades, the serrations of our product continuously show uniform convex and concave in the shape of a turbine, which improves the cutting speed and increases the service life.



Diamond Turbo Blade has strict selection of materials, good abrasion resistance and durability. Our product is ground with high precision, the saw teeth are sharper and the cut surface is smoother. The design of the muffler groove and the heat dissipation hole make the chip removal speed fast, fast heat dissipation, low noise, and prevent deformation caused by thermal expansion and contraction.





1. Wide Turbo Rim Blade



Diameter	Segment size	Bore	Whole sintered
110	2.0*10	20/22.23/25.4	●
115	2.2*8		●
180	2.4*8		●
230	2.8*8		●



2. Narrow Continuous Turbo Rim Blade



Diameter	Segment size	Bore	Whole sintered
105	2.4*10	20/22.23/25.4	●
110	2.0*10		●
115	2.4*10		●
125	2.6*10		●
130	2.6*10		●
150	2.4*10		●
180	2.8*10		●
200	2.8*10		●
230	3*10		●



3. Continuous Turbo Rim Blade with Step protecting Teeth



Diameter	Segment size	Bore	Whole sintered
115	2.0*10		●
125	2.0*10		●
150	2.4*10		●
180	2.6*10		●
230	2.8*10		●



4. Segmented Bevel Turbo Blade



Diameter	Segment size	Bore	Whole sintered
105	2.4*8	20/22.23/25.4	●
115	2.4*8		●
125	2.4*8		●
150	2.6*8		●
180	2.8*8		●
230	3.0*8		●



Diamond Turbo Blade Details

Application: granite, marble, sandstone, Quartz or other materials cutting

Original: Quanzhou, China

Certification: ISO9001,CE, SGS and etc.

Price: Negotiable

Material: steel core, diamond powder and steel powder

Payment term: TT, LC

Delivery date: Negotiable

Packing: export standard

Market: Southeast Asia/Middle East/ Africa/South America/Europe/North America

Warranty: 1 year

MOQ: 1pc



Diamond Turbo Blade Application



Diamond Turbo Blade Packing, Storage, Handling and Transportation

Diamond Turbo Blade if small quantity pack in paper box, if large quantity, they are packed in polywood case before delivery.
