Quarry Stone Cutting Machine

How did people invent the Quarry Stone Cutting Machine?



From the principle of wood sawing, people design and invent a hard material cutting equipment, that is wire saw machine, and it is actuated by electric motor, using diamond wire saw together with pulley or guide wheel to make it cut smoothly and efficiently.



It all started in the late 1940s when an Italian craftsman named Giovanni Cutolo invented the first diamond wire saw. Cutolo had been working in the metal wire industry for many years and became fascinated with the properties of diamonds. He realized that diamonds would make an excellent cutting tool for working on hard materials.



Development of the Diamond Wire Saw



Wire Technology: The development of stronger and more durable wire materials was crucial. Steel wires with embedded diamond particles became the standard for diamond wire saws. These wires could withstand the high tension and friction required for cutting hard materials.

Mechanical Innovations: Engineers developed machines that could drive the diamond wire with precision and control. Early diamond wire saw machines used mechanical drives and pulleys to maintain a consistent tension and speed of the wire.

Electric Power: The introduction of electric motors in the late 19th and early 20th centuries provided a more reliable and efficient power source for diamond wire saws. Electric motors allowed for better control over the speed and tension of the wire, improving cutting efficiency and precision.



Quarry Stone Cutting Machine is globally accepted and widely used now, which exploits the quarry with diamond wire saw machine together with diamond wire saw to greatly increase the productivity.



At the beginning, people do not accept it, because people do not believe new products, but gradually, it turns out very useful and high efficiency.







Quarry Stone Cutting Machine Technical Data

Model	TW-G-37-8P	TW-G-45-8P	TW-G-55-8P	TW-G-75-8P
Mainmotor power	37-8P	45-8P	55-8P	75-8P
Pulley diameter	Φ800mm	Φ800mm	Φ800mm	Φ1000mm
Wire saw speed	0-30m/s	0-30m/s	0-30m/s	0-30m/s
Max.wire saw length	10-70M	10-90M	10-120M	10-150M
Walking motor power	0.75KW	0.75KW	0.75KW	0.75KW
Walking speed of machine	0-1200 mm/m	0-1200 mm/m	0-1200 mm/m	0-1200 mm/m
Rotation angle (electric)	360	360	360	360
Lateral moving distance	60 cm	60 cm	60 cm	60 cm
Max.lateral cutting distance	1800 mm	1800 mm	1800 mm	1900 mm
Rail length	2m*3	2m*3	2m*4	2m*5
Allowed working temperature	-15-43	-15-43	-15 -43	-15-43
Dimension (L*W*H)	2000*1400*1300 mm	2000*1450*1300 mm	2000*1450*1300 mm	2000*1500*1400 mm
Net weight	2700 kg	2800 kg	3000 kg	3500 kg



Quarry Stone Cutting Machine Control Panel in Multi Languages











Note

We have different configurations available:

Standard type: inverter, motor and electric parts supplied by listed enterprises, those of which made in China;

Reinforced type: inverter, motor and electric parts supplied by international companies like Schnider, YASKAWA, Siemens and etc, those of which imported;

Permanent magnet motor type: Recently years, there is popular type installed with permanent magnet motor, which improves the efficiency highly, so it can be your choice.

For more details, please feel free to contact us.



Quarry Stone Cutting Machine Details

Application: granite quarry exploiting, block squaring and etc.

Original: Quanzhou, China

Certification: ISO9001,CE, SGS and etc.

Price: Negotiable

Material: steel and electric product

Voltage: 380V 50Hz, the voltage can be as local demand

Payment term: TT, LC

Delivery date: Negotiable

Packing: export standard

Market: Southeast Asia/Middle East/ Africa/South America/Europe/North America

Warranty: 1 year

MOQ: 1 set

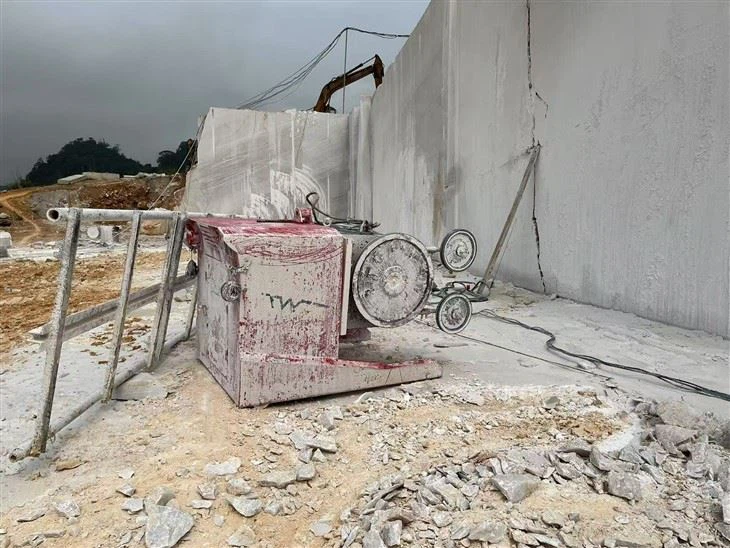

Quarry Stone Cutting Machine Application





Quarry Stone Cutting Machine CE Certificate



Quarry Stone Cutting Machine Packing and Transportation

Wire saw machine is packed in polywood case before delivery. It is electronic product, should be stored in a suitable clean and dry place. Storage conditions should preferably be a sheltered environment with limited temperature -15-43 and low humidity levels.
