Wire Saw Machine for Granite has many types with different powers, and Wire Saw Machine 37KW is one of the them. It uses the sawing mining method. When using the sawing method to exploit quarry, there is a demand of the geological conditions of the ore body, natural conditions and equipment. For example, when open the marble quarry, the hardness factor of rock should be less than 10. For ore body with steep slope, the thickness of rock should be more than 10m. Stone ore bodies with small horizontal or inclination, as long as the blocks can meet the specifications and size of block, even if the thickness of the rock layer is thin, sawing mining method can be also used. And even if there is different degrees of cracks in the stone, if the required mining block rate can be achieved, it can use sawing mining as well. The greatest advantage of our machine is safe cutting and protecting the wire saw to increase the diamond wire durability as well as friendly to the operator.

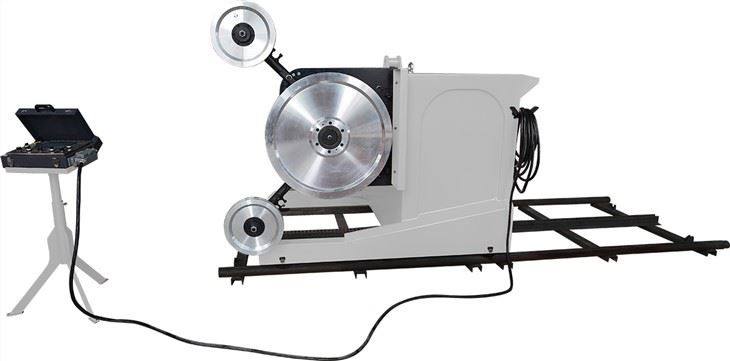

⭐ 37kW Diamond Wire Saw Machine

37 kW Diamond Wire Saw Machine – High-Efficiency Quarry Cutting Solution

The ToolWits 37 kW Wire Saw Machine is a powerful, industrial-grade diamond wire saw rig designed for granite, marble, limestone, and other natural stone quarries. It uses a 37 kW main motor combined with a dual frequency-conversion system for stable, efficient cutting, automatic tension control, and extended wire life.

This machine is ideal for precision block extraction in quarrying operations, offering a safer, low-waste alternative to traditional blasting methods - and it's engineered for long service life and easy operation.



---

✅ Key Features & Advantages

High Cutting Efficiency

Uses a dual frequency-conversion system for smooth, stable speed regulation - enabling high wire speed and better cutting performance.

According to ToolWits, this design improves cutting speed by more than 30% compared to competitors.

Automatic Control & Remote Operation

Supports automatic cutting; operators can also use wireless remote control to run the saw.

The machine has built-in protection for dangerous conditions: wire breakage, machine overload, phase loss, and more.

Constant Tensioning System

Maintains steady wire tension during the cut, which protects the diamond wire, reduces risk of snapping, and extends wire life.

Flexible Cutting Direction

The cutting head can rotate 360°, providing full flexibility for vertical, horizontal, and inclined cuts.

This flexibility makes it suitable for complex block extraction in quarries.

Modular Design

Modular construction simplifies maintenance and replacement of parts.

Facilitates easier transport and assembly at remote quarry sites.

Safety & Wire Protection

The machine features built-in safety mechanisms to protect the wire from overload and sudden breakage.

Designed with operator safety in mind, including wire-rupture alerts and overload protection.

After-Sales & Durability

ToolWits offers a warranty that covers consumable parts, and consumables (wire) can be replaced for free during the warranty period if failures are not due to misuse.

Built with a strong, rugged structure capable of long-term operation in harsh quarry environments.



---

📐 Technical Specifications (Typical / Common for 37 kW Version)

Main Motor Power: 37 kW

Wire Speed: 0–40 m/s

Cutting Head Rotation: 0–360° (electric)

Tension System: Automatic, constant tension

Protection Functions: Wire break, overload, phase loss, over-rotation, etc.

Control Method: Dual frequency-conversion + optional wireless remote

Operation Temperature Range: Typically -15°C to +40°C for similar machines.

Rail / Track Length: Modular (depends on configuration; could use 2m sections per standard for similar models)



---

🌍 Applications

Quarry Block Extraction: Ideal for cutting large blocks in granite, marble, and limestone quarries.

Precision Stone Cutting: Enables precise surface cuts, including vertical, horizontal, and inclined cuts for block sizing.

Eco-Friendly Quarrying: Reduces material waste by minimizing kerf when compared to less precise cutting methods.

Sustainable Operations: Less vibration and lower environmental impact compared to blasting - improved safety and yield.



---

⚙️ Why Choose ToolWits 37 kW Wire Saw Machine

Cost Efficiency: Lower running costs due to high-efficiency motor control and reduced wire breakage.

Longevity: Constant-tension system protects wire, extending its usable life.

Operator-Friendly: Simple controls, remote operation, and strong safety systems.

Modular & Maintainable: Easy to service and scale depending on your site's rail / production layout.

Proven Performance: Designed using industry best practices (frequency-conversion, stable wire speed, tension control) found in advanced quarry saw systems like those from other leading suppliers.

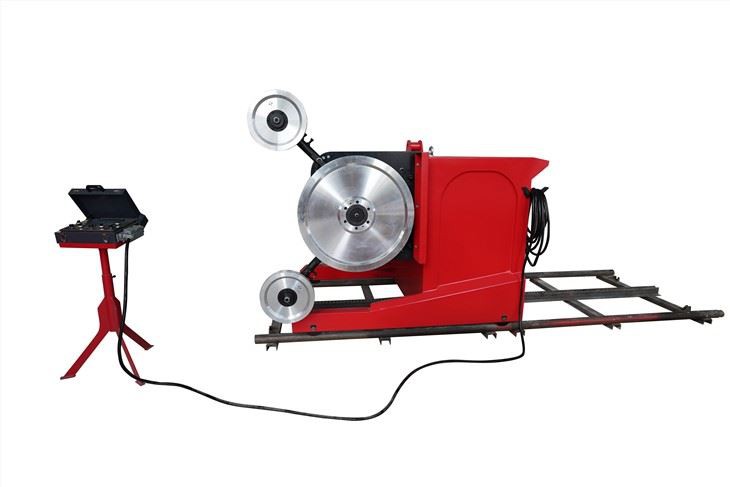

Wire Saw Machine for Granite details

Functions of the Wire Saw Machine for Granite

1.High efficiency: The equipment adopts dual frequency conversion system for high cutting efficiency, stable operation, and long service life of wire, which cutting speed can exceed 30% of other suppliers.

2.The equipment is easy to operate which can achieve automatic cutting, and wireless remote control.
3.Modular design is adopted, which is extremely convenient for maintenance and replacement of parts.
4. The equipment has protection functions for wire broken, machine overload, lack of phase, over-rotated limit etc.





Our service

1. MOQ: Any quantity you need is welcomed.

2. Good Service: We treat you need with high professionalism and passion.

3. Good Quality: Strict quality control system. Products get great feedback from customers.

4.Package: Crate with waterproof plastic.



Wire Saw Machine for Granite Packing, Storage, Handling and Transportation
