Horizontal Core Boring Machine

Horizontal Core Boring Machine

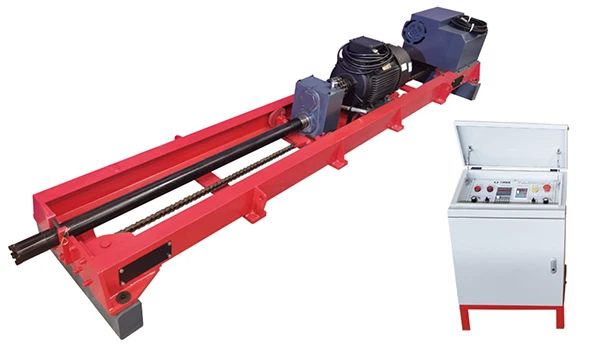

Horizontal Core Boring Machine is a hole drilling machine in horizontal, and applies electric motor drive, using the core drill bit to drill and cooling with water, and it max can drill 40m depth. Normally Horizontal Core Boring Machine is Dia. 80mm, and with Fix speed and with inverter variable speed available.
Send Inquiry
Description

Horizontal Core Boring Machine refers to a device that uses a tool that is harder and sharper than the target to leave a cylindrical hole or hole in the target by means of rotary cutting or rotary extrusion. Our product is driven by a motor, drilled with a hollow drill bit and cooled with water, and the maximum drilling depth is 50m.



Horizontal Core Boring Machine has two options of fixed speed and variable frequency variable speed. It is mostly used in combination with blade longitudinal cutting and wire saw cross cutting. Our product has the characteristics of stable performance and high reliability. The use of power control can double the construction speed, shorten the construction period, further save labor costs, and expand the scale of acceptable construction projects.





Technical Data

Model

TWHF

TWHV

Mainmotor power

22KW

22KW

Rotation mode

electric auto

electric auto

Walking motor power

0.45KW

0.45KW

Moving forward mode

/

Inverter controlling

Dimeter of drill hole

Φ76MM

Φ76MM

Drilling rod specification(dia.*length)

Φ73*1500MM

Φ73*1500MM

Single feeding distance

1500MM

1500MM

Speed of drilling

5-10M/S

5-10M/S

The minimun pressure for cooling water supply

0.1Mpa

0.1Mpa

Max.depth of drill hole

50MM

50MM

Net weight

1200KG

1200KG



Note

For more details, please feel free to contact us.



Product Details

Application: in stone quarry exploiting, hole drilling and etc.

Original: Quanzhou, China

Certification: ISO9001,CE, SGS and etc.

Price: Negotiable

Material: steel and electric motor drive

Voltage: 380V 50Hz, the voltage can be as local demand

Payment term: TT, LC

Delivery date: Negotiable

Packing: export standard

Market: Southeast Asia/Middle East/ Africa/South America/Europe/North America

Warranty: 1 year

MOQ: 1 set



CE Certificate

CE Certificate for Horizontal Core Boring Machine



Features

It is easy to lift and install, and suitable for narrow and small space working conditions to drill and get stone samples deep inside

01

Controlled by inverter to adjust the drilling speed automatically according to the different stone characteristic and make sure the fast drilling and straightness

02

Cooling with water that without dust and less noise, and is environment friendly

03

Terminal limit function is available to make sure the machine startup and stop smooth and steady

04



Application

product-1-1



Packing, Storage, Handling and Transportation

Horizontal Core Boring Machine is packed in polywood case before delivery. It is electronic product, should be stored in a suitable clean and dry place. Storage conditions should preferably be a sheltered environment with limited temperature -15-43 and low humidity levels.
