Concrete Wire Saw Machine

The Concrete Wire Saw Machine is a highly useful piece of equipment that has revolutionized the construction and demolition industry. Its ability to cut thick and irregular concrete structures with ease has made it an invaluable tool for all kinds of building engineering and construction projects.



The Concrete Wire Saw Machine can be used to cut through various types of materials such as reinforced concrete, rock, ceramic, and even brick walls. This makes it an ideal equipment for opening doors, windows, vents, and other necessary features for a building.



The machine is also perfect for processing and cutting reinforced concrete beams, pillars, and floors, as well as bridges. This makes it an indispensable tool for any renovation or reconstruction project.



The Concrete Wire Saw Machine is helping to ensure that the desired shape and size are achieved with minimal effort. This saves both time and money while also increasing the quality of the final product.



Moreover, the Concrete Wire Saw Machine is highly dependable and reliable. It is designed with the latest technology, making it a durable and robust tool that can withstand tough conditions. It ensures that the construction project runs smoothly without any interruptions due to faulty equipment.







Concrete Wire Saw Machine Technical Data

Model	TW-11-6P	TW-15-6P	TW-22-6P
Main motor power	11KW-6P	15KW-6P	22KW-6P
Flywheel diameter	Φ500MM	Φ500MM	Φ550MM
Wire saw speed	0-40M/S	0-40M/S	0-40M/S
Max. wire saw length	5-20M	5-30M	5-40M
Walking motor power	0.75KW	0.75KW	0.75KW
Walking speed of machine	0-50CM/S	0-50CM/S	0-50CM/S
Rail length	2M	2M	2M
Dimension (L*W*H)	2000*800*700 mm	2000*800*700 mm	2000*800*700 mm
Net weight	380KG	380KG	450KG







Note

We have different configurations available:

Standard type: inverter, motor and electric parts supplied by listed enterprises, those of which are made in China;

Reinforced type: inverter, motor and electric parts supplied by international companies like Schnider, YASKAWA, Siemens and etc, those which are imported;

For more details, please feel free to contact us.



Concrete Wire Saw Machine Details

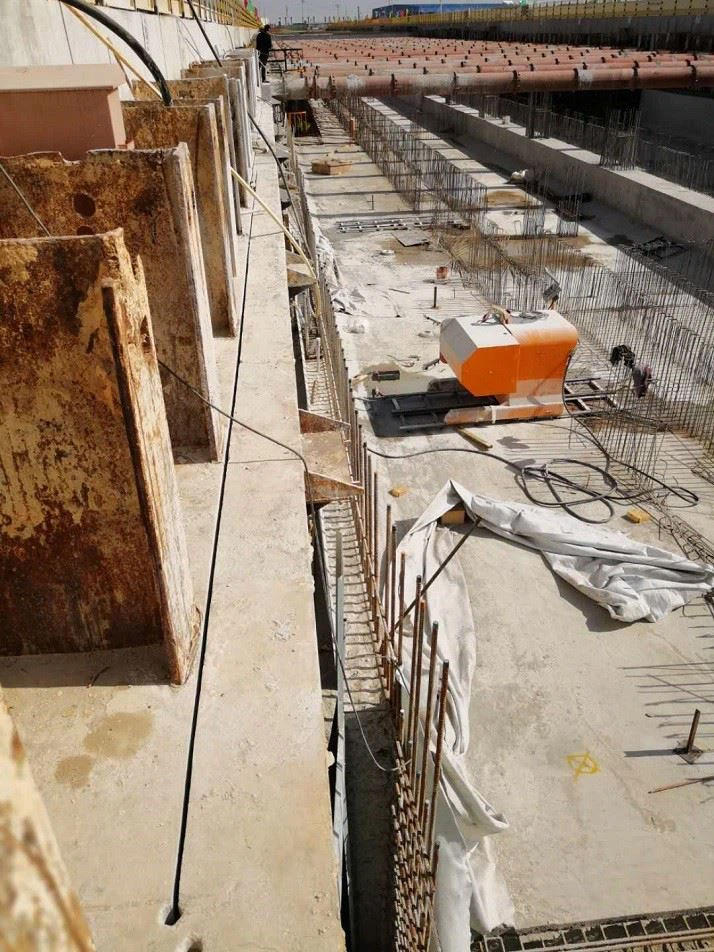

Application: reinforced concrete beam and pillar, floor, bridge and etc cutting and processing.

Original: Quanzhou, China

Certification: ISO9001,CE, SGS and etc.

Price: Negotiable

Material: steel and electric product

Voltage: 380V 50Hz, the voltage can be as local demand

Market: Southeast Asia/Middle East/ Africa/South America/Europe/North America

Warranty: 1 year

MOQ: 1 set





Concrete Wire Saw Machine – High-Precision Cutting for Reinforced Concrete Structures

A concrete wire saw machine is a specialized industrial tool designed for cutting through reinforced concrete, masonry, and other hard construction materials with precision and minimal structural impact. Unlike traditional circular saws or jackhammers, this machine uses a diamond-coated steel wire that gradually abrades the material, delivering smooth, accurate cuts without excessive vibration or dust.

Concrete wire saw machines are widely used in demolition, retrofitting, tunnel construction, bridge reconstruction, and industrial projects, where precise, safe, and efficient cutting is essential.



---

How Concrete Wire Saw Machines Work

The machine operates with a looped steel cable embedded with industrial diamonds, guided over pulleys around the target structure. The drive system moves the wire at controlled speed and tension while a water-cooling system flushes debris, reduces friction, and prolongs wire life.

This method allows operators to cut thick walls, beams, columns, and foundations with exceptional precision. Unlike impact-based cutting, the diamond wire gradually grinds the material, which minimizes cracking, vibration, and structural damage.



---

Key Advantages of Concrete Wire Saw Cutting

1. Unlimited Cutting Depth

The diamond wire loop can cut extremely thick or oversized concrete elements, unlike conventional circular saw blades restricted by diameter.

2. Precise, Smooth Cuts

Wire sawing produces flat, clean surfaces, reducing the need for secondary finishing and improving overall construction quality.

3. Reduced Vibration, Noise, and Dust

With controlled abrasion and water cooling, wire saw machines are significantly quieter and safer for urban or indoor projects.

4. Flexible Cutting Angles

They can perform vertical, horizontal, and angled cuts, making them suitable for complex structures or confined spaces.

5. Protects Structural Integrity

Gradual, controlled cutting reduces the risk of damaging surrounding concrete or steel reinforcements.



---

Typical Applications

Bridge and tunnel demolition – controlled removal of thick structural elements

Building renovation and retrofitting – precise wall and slab removal

Foundation cutting and modification – anchor holes, drainage, and rebar exposure

Industrial facility upgrades – safe cutting of floors, walls, and columns

Underwater or challenging site conditions – wire saws operate efficiently in wet or restricted spaces

These applications make concrete wire saw machines indispensable for civil engineering, construction, and industrial projects requiring safety and precision.



---

Key Components of a Concrete Wire Saw Machine

Diamond Wire Rope – steel cable with diamond beads for efficient cutting

Drive and Guide Wheels – keep the wire in alignment during operation

Motor or Hydraulic Drive – provides consistent speed and torque

Water Cooling System – prevents overheating and flushes cutting debris

Control Panel – monitors tension, speed, and operational parameters

These components ensure stable cutting, extended wire life, and optimal operator control even under heavy-duty conditions.



---

Selecting the Right Concrete Wire Saw Machine

When choosing a wire saw machine, consider:

Maximum cutting thickness and wall dimensions

Concrete hardness and reinforcement density

Power source (electric or hydraulic)

Mobility requirements for tight or elevated sites

Wire type and bead spacing to match project conditions

Ease of maintenance and availability of replacement parts

Choosing the right model ensures efficiency, safety, and long-term durability.



---

Best Practices for Wire Saw Operation

Maintain constant water flow during cutting to prevent overheating

Check and adjust wire tension for straight and stable cuts

Rotate or reposition the wire periodically to ensure even wear

Avoid dry cutting, which accelerates bead wear and reduces wire lifespan

Store the machine in a dry environment when not in use

Following these practices can extend wire life by up to 40% and reduce operational downtime.



---

Why Concrete Wire Saw Machines Are Superior

Feature	Concrete Wire Saw	Traditional Circular Saw
Cutting Depth	Unlimited	Limited by blade diameter
Surface Finish	Smooth, flat	Rough, may require finishing
Vibration & Noise	Low	High
Dust Generation	Minimal (with water)	High
Flexibility	Vertical, horizontal, angled	Mostly straight cuts

The precision, flexibility, and safety of concrete wire saw machines make them the preferred choice for modern civil and industrial construction projects.





Concrete Wire Saw Machine Packing and Transportation

The concrete Wire Saw Machine is packed in polywood case before delivery. It is an electronic product, should be stored in a suitable clean and dry place. Storage conditions should preferably be a sheltered environment with a limited temperature of -15-43 and low humidity levels.
