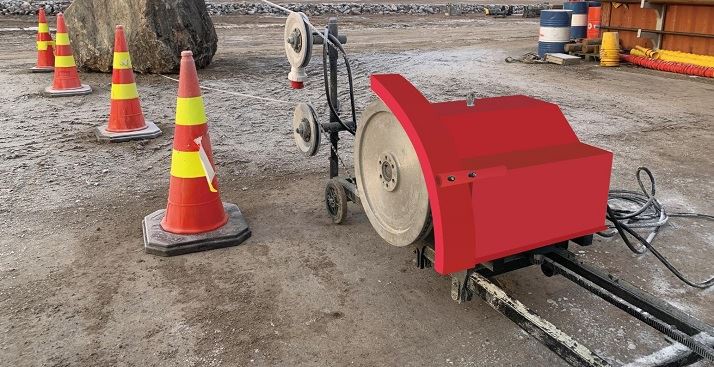

Granite Rope Cutting Machine

Granite Rope Cutting Machine

The Granite Rope Cutting Machine is a powerful and efficient tool designed specifically for cutting granite and other hard stones in quarries and stone processing industries. Using diamond-coated ropes, this machine provides precise, high-speed cutting with minimal waste, making it an essential piece of equipment for large-scale stone extraction and fabrication.



Why Choose Our Granite Rope Cutting Machine?

The Granite Rope Cutting Machine offers quarry operators a reliable, high-performance solution for cutting through granite and other hard stones. Its diamond-rope technology delivers precision, speed, and durability, making it an essential tool for increasing efficiency and reducing costs in stone extraction and processing. Whether you're working in a quarry or stone fabrication facility, this machine provides the performance and cost-effectiveness needed to keep operations running smoothly.





Granite Rope Cutting Machine Technical Data:

Model	TW-11-6P	TW-15-6P	TW-22-6P
Mainmotor power	11KW-6P	15KW-6P	22KW-6P
Flywheel diameter	Φ500MM	Φ500MM	Φ550MM
Wire saw speed	0-40M/S	0-40M/S	0-40M/S
Max.wire saw length	5-20M	5-30M	5-40M
Walking motor power	0.75KW	0.75KW	0.75KW
Walking speed of machine	0-50CM/S	0-50CM/S	0-50CM/S
Rail length	2M	2M	2M
Dimension (L*W*H)	2000*800*700 mm	2000*800*700 mm	2000*800*700 mm
Net weight	380KG	380KG	450KG



Note

We have different configurations available:

Standard type: inverter, motor and electric parts supplied by listed enterprises, those of which are made in China;

Reinforced type: inverter, motor and electric parts supplied by international companies like Schnider, YASKAWA, Siemens and etc, those which are imported;

For more details, please feel free to contact us.



Granite Rope Cutting Machine Details:

Application: block squaring or edge trimming and etc.

Certification: ISO9001,CE, SGS and etc.

Price: Negotiable

Material: steel and electric product

Voltage: 380V 50Hz, the voltage can be as local demand

Payment term: TT, LC

Delivery date: Negotiable

Packing: export standard

Warranty: 1 year

MOQ: 1 set



Granite Rope Cutting Machine Key Features:

Diamond-Rope Cutting Technology: This machine utilizes a diamond-coated rope, which allows for efficient, smooth, and precise cutting through hard materials like granite, marble, and limestone. The diamond particles on the rope help slice through the stone with ease, minimizing wear on both the rope and the machine.

High Efficiency & Speed: With its powerful motor and advanced rope technology, the granite rope cutting machine delivers fast cutting speeds, allowing quarry operators to efficiently cut large blocks of stone with high precision. This increases productivity and reduces cutting time for each block.

Versatility in Cutting Angles: The machine offers flexible cutting capabilities, including vertical and horizontal cuts. This makes it suitable for various quarrying applications, allowing for precise block shaping, as well as cutting slabs for further processing.

Longer Service Life of Rope: The diamond-coated rope is designed to handle high-stress cutting environments while maintaining its cutting efficiency for extended periods. With minimal maintenance required, the machine ensures a long service life, reducing the cost of consumables.

Minimal Environmental Impact: Compared to traditional methods like chain saws or blasting, the granite rope cutting machine produces less dust and noise. It is an eco-friendly solution that helps reduce the environmental footprint of stone cutting operations.

Cost-Effective: The machine uses minimal power and water, reducing operational costs compared to more traditional quarrying equipment. It also generates less waste material, allowing operators to maximize the value of each stone block.

Easy Operation and Maintenance: Designed for ease of use, the granite rope cutting machine features intuitive controls and simple maintenance procedures. Operators can quickly set up and adjust cutting parameters, while the machine's durability ensures minimal downtime and high reliability in demanding quarry environments.



After-sales service:

Exclude damage to machine parts caused by intentional damage or operational errors. Consumables can be replaced free of charge during the warranty period.



Granite Rope Cutting Machine Applications:

Granite Quarrying: Ideal for extracting granite blocks and slabs from quarries, offering high precision and efficiency in cutting.

Stone Processing: Suitable for fabricating granite slabs for countertops, tiles, and other construction applications.

Hard Stone Cutting: Can also be used for cutting other hard stones like marble, sandstone, and limestone in quarrying and fabrication.

Mining and Excavation: Useful for precise cutting in mining and excavation operations where large stone blocks are needed.



Granite Rope Cutting Machine Packing, Storage, Handling and Transportation

The wire saw machine is packed in polywood case before delivery. It is an electronic product and should be stored in a suitable clean and dry place. Storage conditions should preferably be a sheltered environment with a limited temperature of -15-43 and low humidity levels.
