Diamond Wire Rock Cutting Machine

The actual capacity of the diamond wire rock cutting machine depends on the ore body's own conditions and external conditions. With the same set of mining equipment in different conditions of the mine, the mining capacity may be very different. In open-pit mining, hoisting equipment is required to move the mining equipment, lift the blocks, and discharge the waste slag. The principle of open-pit mining of concave marble mines must also follow the order of top-down layered mining. The mining sequence and steps are: Excavate and prepare trenches, expand trenches to form free surfaces and steps for mechanized sawing and mining. Exploring the blocks that have been formed, as the lifting of the blocks and the clearing and discharging of the gravel and waste residue. In open-pit mining in depressions, as the mining surface expands, the excavation of the trenches needs to be carried out all the time. For ore bodies with a large layer thickness, when the mining surface is expanded to a certain extent, one or more layer steps need to be pushed down to form a multi-step mining layout that goes down. Therefore, when using a wire saw machine to cut the mine, choose the appropriate machine according to the actual situation of the mine.





Diamond Wire Rock Cutting Machine parts:



Diamond Wire Rock Cutting Machine – Advanced Quarry & Stone Cutting Equipment

Overview

The Diamond Wire Rock Cutting Machine is a state-of-the-art quarry and stone cutting solution, engineered for precision, efficiency, and safety in extracting large stone blocks. Using a diamond-embedded wire rope, this machine cuts through hard rocks such as granite, marble, limestone, sandstone, and basalt with minimal waste and smooth surface finish.

Unlike traditional blasting or circular saw cutting, diamond wire cutting offers narrow kerf, reduced vibration, and low dust operation, making it the preferred choice for modern quarries and stone processing factories.



---

Key Features & Benefits

🔹 High-Efficiency Diamond Wire Cutting

The machine uses a continuous steel wire embedded with high-quality industrial diamonds. The abrasive action allows it to cut thick, hard stone blocks efficiently while maintaining clean, flat surfaces. This technology reduces material loss, increases usable stone yield, and ensures consistent block quality.

🔹 Multi-Directional Cutting

Supports vertical, horizontal, inclined, and blind cuts, enabling flexibility to handle complex quarry layouts and irregular stone formations. Operators can adjust cutting angles to maximize efficiency and minimize wasted material.

🔹 Adjustable Wire Speed & Tension

Equipped with dual frequency conversion drive and PLC-controlled automation, the machine allows precise adjustment of wire speed, tension, and feed rate. This ensures stable cutting performance and protects the diamond wire from excessive wear.

🔹 Durable Construction

Built with reinforced steel frames, high-power electric or hydraulic motors, and robust drive systems, the machine is engineered for continuous, heavy-duty operation in rugged quarry environments.

🔹 Water Cooling & Dust Suppression

An integrated water cooling system reduces heat generated during cutting, prolongs diamond wire life, and suppresses dust, improving safety and environmental conditions on-site.

🔹 Automated Safety Features

Includes wire break protection, overload protection, and limit switches to prevent accidents and damage to the machine, ensuring safe operation for quarry workers.



---

Applications

The Diamond Wire Rock Cutting Machine is ideal for:

Quarry extraction of granite, marble, limestone, sandstone, and basalt blocks

Horizontal, vertical, and inclined block separation

Preparation of large slabs for architectural and construction projects

Bridge, tunnel, and large infrastructure stone cutting

Dimension stone processing and profiling

It is widely used in open-pit quarries, bench cutting operations, and stone fabrication factories due to its efficiency, precision, and versatility.



---

Technical Specifications (Typical)

Feature	Specification
Motor Power	22–75 kW (varies by model)
Wire Speed	Adjustable 0–40 m/s
Cutting Direction	Vertical, horizontal, inclined
Control System	PLC with dual frequency conversion
Cooling	Water spray cooling system
Protection Features	Wire break, overload, limit switches
Max Block Size	Up to 4–5 meters (model dependent)
Wire Diameter	Typically 9–12 mm, customizable

Specifications can be customized based on quarry size, stone hardness, and production requirements.



---

Advantages for Quarries & Stone Processing

Increased Productivity – Continuous wire cutting allows faster extraction than traditional saws or blasting.

Minimal Material Waste – Narrow kerf preserves stone and maximizes block yield.

High Precision & Uniformity – Produces smooth, flat cuts suitable for direct fabrication into slabs or finished stone products.

Improved Worksite Safety – Less vibration, noise, and dust compared to blasting.

Reduced Operating Costs – Longer diamond wire life, less labor, and minimal post-cut finishing save time and money.



---

FAQ

Q: What is a diamond wire rock cutting machine?
A: It is an industrial cutting system that uses a steel cable embedded with diamonds to cut large blocks of stone efficiently and precisely.

Q: What types of stones can it cut?
A: Granite, marble, limestone, sandstone, basalt, and other natural stones.

Q: How does it differ from traditional stone cutting methods?
A: Diamond wire cutting produces clean, precise cuts with minimal waste, reduced dust, and lower vibration, unlike blasting or circular blade cutting.

Q: Can the machine cut at angles?
A: Yes, it supports vertical, horizontal, and inclined cuts for complex quarry geometries.

Q: Does it require water cooling?
A: Yes, water is used to cool the wire, reduce dust, and extend wire life.



Features of Diamond Wire Rock Cutting Machine

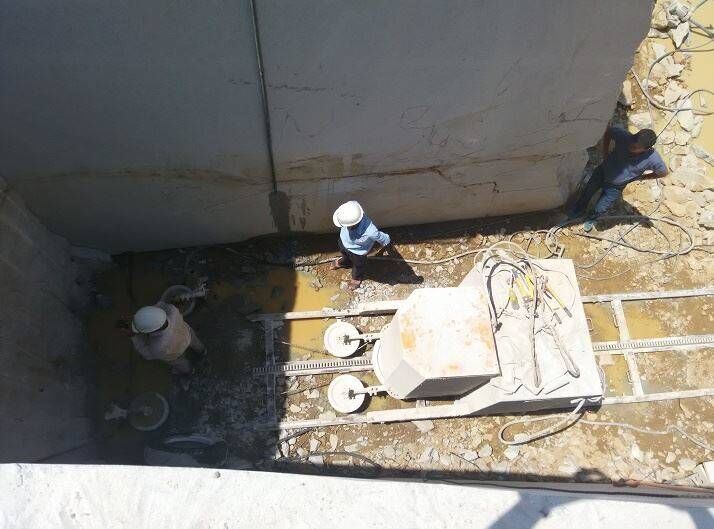

Application:



CE Certificate



Packing and Delivery

Diamond Wire Rock Cutting Machine firstly is wrapped with plastic film and then packed in polywood case before delivery. It is an electronic product, should be stored in a suitable clean and dry place. Storage conditions should preferably be a sheltered environment with a limited temperature of -15-43 and low humidity levels.
