Wire Saw for Granite Quarry: The Ultimate Guide to Efficient Block Cutting
Introduction
In the world of granite quarrying, efficiency and precision determine profitability.
Extracting large, crack-free blocks from hard stone requires advanced equipment - and among all cutting technologies, the diamond wire saw has become the preferred solution for modern granite quarries worldwide.
This guide explains how a wire saw for granite quarry works, its advantages over traditional methods, and how to maximize performance using ToolWits diamond wire saw systems.
1. What Is a Wire Saw for Granite Quarry?
A wire saw is a stone cutting machine that uses a diamond-embedded wire to cut through granite, marble, and other natural stones.
Unlike traditional drilling or blasting methods, a wire saw enables clean, controlled, and continuous cutting without damaging the stone structure.
Key Features:

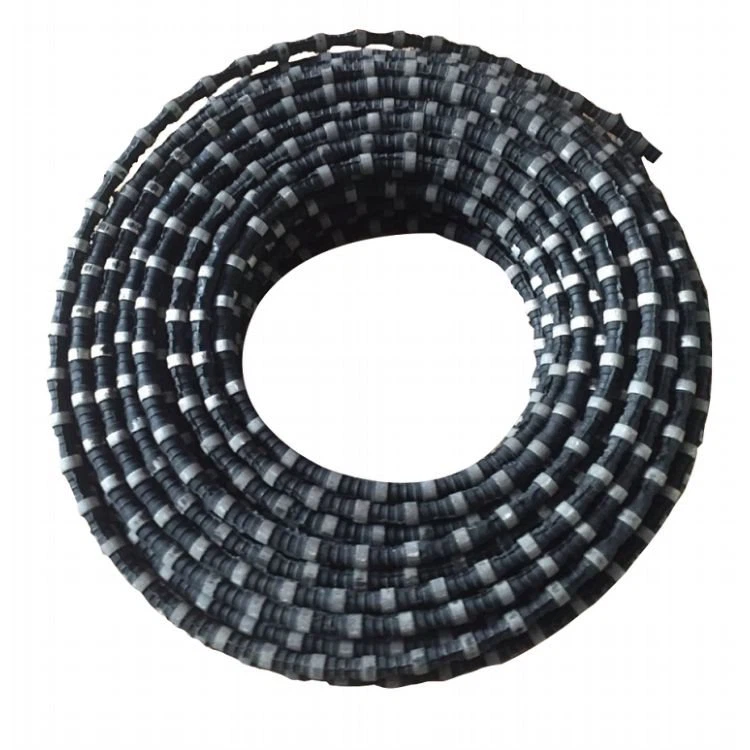

Diamond wire loop: steel cable with sintered diamond beads
Driving and tensioning system: maintains stable wire speed
Guide pulleys: direct the wire around the granite block
Cooling system: circulates water to reduce friction and dust
2. Why Choose a Wire Saw for Granite Quarry Cutting
Using a diamond wire saw in a granite quarry delivers multiple operational and environmental advantages compared to mechanical saws or explosives.
| Advantage | Description |
|---|---|
| High Precision | Cuts exact block sizes with minimal deviation (±2 mm). |
| Reduced Waste | Minimizes kerf loss and preserves valuable granite. |
| Smooth Surface Finish | Produces clean faces, reducing polishing costs. |
| Low Noise & Vibration | Prevents microcracks and improves worker safety. |
| Lower Energy Consumption | Uses less power than frame or chain saws. |
| Flexible Application | Works for vertical, horizontal, and inclined cuts. |
3. Working Principle of Granite Quarry Wire Saw
The diamond wire is wrapped around the block and driven at high speed (20–35 m/s).
Each bead on the wire contains industrial diamonds that grind through the granite by abrasion.
Cutting Steps:
Drill holes at the block corners for wire passage.
Thread the wire through the holes to form a closed loop.
Start the machine, applying steady tension.
Continuous water cooling reduces heat and removes debris.
Automatic feed control maintains constant cutting pressure.
When cutting is complete, the block separates cleanly from the rock bed, ready for lifting and transport.
4. Choosing the Right Wire Saw for Granite
When selecting a wire saw for granite quarrying, consider the following key parameters:
a. Motor Power
Recommended: 37–55 kW for standard quarries
Heavy-duty operations may require 75–90 kW systems
b. Wire Diameter
10.5–11.5 mm for granite cutting - offers strong stability and long lifespan.
c. Bead Type
Sintered diamond beads (high bond strength, thermal resistance).
Ideal for hard granite, maintaining cutting sharpness longer.
d. Speed and Feed Rate
Wire speed: 25–35 m/s
Feed rate: 10–25 cm/hour, depending on stone hardness.
e. Cooling System
Maintain constant water flow (≥15 L/min) to avoid bead overheating.
(Image ALT: ToolWits wire saw configuration for granite cutting)
5. Maintenance Tips for Long-Term Quarry Performance
Proper maintenance extends the service life of both the wire and the machine.
Check pulley alignment before each cut.
Inspect wire tension regularly (250–350 kg range).
Rotate wire direction every 10–15 cutting hours.
Clean water nozzles and ensure consistent cooling.
Replace worn beads or joints before breakage.
6. Safety Considerations
Granite quarrying involves high tension and moving parts - follow these best practices for safety:
Keep operators trained and protected with gloves, helmets, and goggles.
Maintain a safe distance during cutting operations.
Avoid dry cutting - overheating may cause wire failure.
Use automatic shutdown systems for overload or wire breakage.
7. Why ToolWits Wire Saw for Granite Quarry?
At ToolWits, we specialize in diamond wire saws and cutting systems tailored for the global quarrying industry.
Our machines and diamond wires are designed to deliver stable performance, long lifespan, and cost efficiency under harsh quarry conditions.
ToolWits Product Highlights:
ISO9001-certified manufacturing
European steel core and precision beads
Advanced vulcanized rubber coating
Intelligent control system for automatic tensioning
Field-tested in granite quarries across Europe, India, and China
FAQ
Q1: Can one wire saw handle both vertical and horizontal cuts?
A: Yes, ToolWits wire saws are designed for multi-directional cutting and can easily switch between vertical, horizontal, and inclined operations.
Q2: How long does a diamond wire last in granite quarrying?
A: Depending on granite hardness and operator skill, each wire can last 50–100 hours or cut up to 40–60 m².
Q3: What's the best way to improve cutting speed in granite?
A: Use the correct wire tension, maintain bead sharpness, and ensure adequate cooling to prevent glazing.
Conclusion
A wire saw for granite quarry is not just a machine - it's the foundation of a profitable stone extraction operation.
By using high-quality diamond wire technology and maintaining proper cutting parameters, quarry owners can achieve higher output, better quality blocks, and lower operational costs.
ToolWits provides complete solutions for granite quarry cutting, from diamond wires to full saw systems and technical support.
📩
to discuss your granite quarry requirements and get a customized quote.
Let's cut faster, safer, and smarter - with precision engineered by ToolWits.
