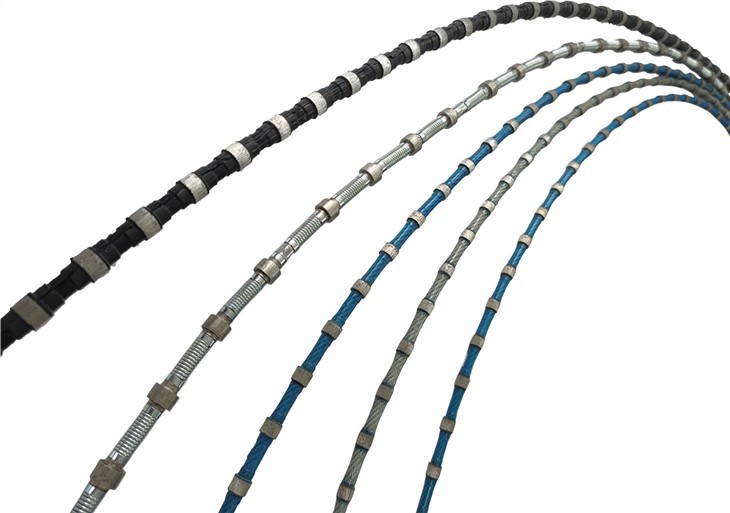

The wire saw must be connected into a closed loop through a joint before cutting operations. Different wire saw for different purposes should be connected with different joints. The quality of the joints directly affects the normal operation and service life of the wire rope. There are many ways to combine joints, metal fixed joint is one of the way. This kind of joint is a one-time use fixed joint, is the most used wire rope joint. Insert the two ends of the wire rope from the two ends of the metal sleeve respectively, and the insertion distance is one-half of the sleeve. Use a crimping tool to compress the joint between the casing and the wire rope, directly connect by the static friction between the sleeve and wire rope. The sleeve is made of copper or steel, copper joints are often used for marble, limestone and other soft stone cutting, steel joints are mostly used for granite and other hard stone cutting. The characteristic of metal sleeve fixed joint is simple structure, reliable connection and low cost. The disadvantage is that as the cutting area decreases, sometimes need to cut the length of the wire saw, and every time cut at the joint, will waste one bead each time at least, and the wire rope will be shortened. Especially when connect the spring wire saw, you have to insert the beads, spring, gasket and other parts, the operation is more troublesome.
1.Features:
1.Very less breakage ratio when using, therefore increase the working lifetime
2. Automatic production ensures stable quality performance
3. Safe, high efficiency and environment protecting
2.Packing, Storage, Handling and Transportation:
Diamond wire saw is wrapped by plastic waterproof film first, then put it into strong carton. If small quantity packed in paper box, if large quantity, they are packed in polywood case. Normally pack in small paper box delivery by express or by air, and pack in polywood case deliver by sea.
3.Attention:
1. Checking the saw regularly and adjust timely.
2. Checking the pearl abrade regularly, avoid wear.
3. Checking the joint regularly and adjust timely.
4.Application:
5.After sales service team:
6.Technical Team:
