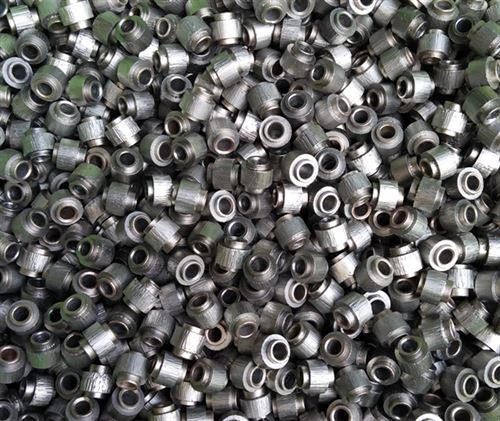

The manufacturing process of Wire Diamond Saw beads is sintering method. The manufacturing process of sintered beads and the selected binder metal are very similar to the hot pressed sintered diamond segment. It is a new type of bead production technology which is improved on the basic of impregnated bead production technology. This production process directly cold presses diamond particles and copper, nickel, cobalt, manganese and other binder metal powders into a sintered ring, in a gas protection environment, simultaneously heat and pressurize at a temperature lower than 1000 degrees Celsius, the binder metal is extruded in the molten state and tightly combined with the diamond particles to form the beads. Because the hot pressing sintering process with low-temperature gas protection is used to manufacture the sintered beads, there is no oxygen in the sintering environment during the whole hot-pressing process, which prevents the bonding agent from being oxidized. Due to the low solubility of other metal powders to carbon, the possibility of carbonization of diamond particles in sintering process is prevented. By taking effective control measures of low temperature and low pressure process parameters, the temperature and pressure of hot pressing can be adjusted to the lowest appropriate value as possible, so as to eliminate the damage of hot pressing process to the physical and chemical properties of diamond. In this way, you can maintain the firmness of matrix and also can not affect the strength of diamond. When using sintered wire saw, also must ensure and adequate supply of cooling water.
TOOLWITS Wire Saw D9.0 mm – Premium Diamond Cutting Wire for Stone & Concrete
The TOOLWITS Wire Saw D9.0 mm is a professional-grade diamond wire saw designed for precise, fast, and efficient cutting of stone, concrete, and reinforced materials. Featuring a 9 mm steel core with high-quality diamond beads, it provides minimal kerf width, smooth cuts, and long-lasting performance, making it ideal for stone quarries, block extraction, construction projects, and industrial applications.
Diamond wire saws are highly valued in the stone and construction industry because they allow deep, straight, or curved cuts, reduce material waste, and deliver superior surface finish compared to conventional saw blades.
Key Features of D9.0 mm Diamond Wire Saw
💎 High-Quality Diamond Beads
Industrial-grade diamonds embedded in each bead ensure high cutting efficiency and long service life.
Uniform bead spacing provides consistent cutting performance on granite, marble, limestone, concrete, and engineered stone.
⚙ Durable Steel Core
High-tensile steel core withstands extreme tension, preventing stretching or breakage during cutting operations.
Supports long continuous cutting cycles for quarry or industrial applications.
🔄 Flexible & Adaptable
Can be used for straight, curved, or intricate cuts that rigid blades cannot perform.
Compatible with stationary wire saw machines, portable cutting rigs, and quarry block extraction equipment.
🔹 Narrow Kerf, Less Material Waste
9 mm wire diameter ensures a thin cutting line, maximizing usable stone and reducing wastage.
Smooth, precise cuts minimize secondary finishing work, saving time and cost.
🛠 Safe and Efficient
Low vibration and noise compared to traditional saw blades.
Can be used in wet or dry setups, depending on machine and site conditions.
Typical Applications
🏗 Stone Quarrying & Block Extraction
Cut large blocks of granite, marble, limestone, sandstone.
Ideal for preparing slabs, countertops, and architectural stone blocks.
🧱 Concrete Cutting & Demolition
Precise cutting of reinforced concrete walls, slabs, and beams.
Widely used in renovation, structural modification, and demolition projects.
🪨 Architectural & Decorative Stone
Enables curved or custom-shaped cuts for columns, facades, and decorative elements.
Achieves smooth surface finishes with minimal chipping.
⚙ Industrial & Specialty Materials
Suitable for engineered stone, ceramics, and composite materials that are challenging to cut with conventional tools.
Technical Specifications
Wire Diameter: 9.0 mm
Diamond Beads: Industrial-grade, uniform spacing
Wire Core: High-strength steel for durability
Wire Length: Customizable based on project requirements
Compatibility: Wire saw machines, portable rigs, quarry extraction setups
Customization Options: OEM branding, bead spacing, diamond grit, and wire length adjustments
Advantages of TOOLWITS Wire Saw D9.0 mm
High cutting speed and efficiency for stone and concrete.
Long-lasting diamond beads reduce replacement frequency.
Flexible cutting paths for straight, curved, and complex shapes.
Narrow kerf preserves more usable material.
Compatible with a wide range of wire saw machines.
OEM and custom solutions available for distributors and quarry operators.
Features of Wire Diamond Saw
FEATURE 01
Easy operation for cutting
FEATURE 02
Available for big and irregular building cutting
FEATURE 03
No pollution with high efficiency
Packing and Delivery
Wire Saw for Block Cutting
Wire Saw for Granite
Wire Saw for Granite Packed for Delivery
