We have the best quality wire saw machine for stone quarry. Ergonomical and user-friendly design make it easy for operator to run the machine. Remote and cable control are both available for your choice. Before the machine is hoisted, the machine drive wheel should be placed on the side of the sawing surface to check whether there are foreign objects on the top surface of the machine, and the hoisting wire rope and buckle are intact and firmly connected before hoisting. The machine can be hoisted using equipment such as mast cranes, forklifts, excavators, etc. It cannot be lifted and transported at a high position. The height of the sawing machine should not exceed 60cm from the bottom surface. It should not collide or drop the equipment. There should be no one in the moving track and under the wire saw machine. Between the sawing machine and the guide rail, it ensures the safety of personnel and equipment during the lifting process.
Wire Saw Machine For Stone Quarry Parts:

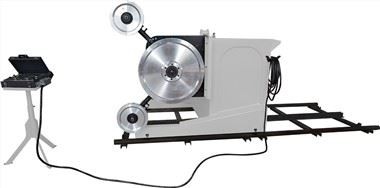

Wire Saw Machine for Stone Quarry – High-Efficiency Diamond Cutting Solution
A wire saw machine for stone quarry is an advanced cutting system designed for the efficient extraction of large stone blocks from natural quarries. Using a diamond wire rope with sintered diamond beads, this machine delivers precise, low-loss cutting for granite, marble, limestone, sandstone, basalt, and other hard stones. Compared with traditional drilling and blasting methods, quarry wire saw machines provide higher yield, cleaner cuts, reduced vibration, and improved safety.
Toolwits stone quarry wire saw machines are engineered for heavy-duty continuous operation, making them ideal for modern quarry production lines that demand accuracy, productivity, and cost control.
Key Features of Stone Quarry Wire Saw Machine
High-Power Drive System
Equipped with electric or hydraulic motors to ensure stable torque output and consistent cutting speed in hard stone conditions.
Advanced Automatic Tension Control
Maintains optimal wire tension during operation, reducing wire breakage and extending diamond wire service life.
Strong Frame & Quarry-Grade Construction
Built with reinforced steel structure to withstand harsh quarry environments, vibration, and long-hour operation.
Flexible Cutting Direction
Suitable for vertical, horizontal, and inclined cutting, enabling efficient block separation and profiling.
Low Kerf Loss & High Yield
The narrow cutting gap minimizes stone waste and increases the recovery rate of valuable stone blocks.
Water Cooling & Dust Suppression
Continuous water supply cools diamond beads, reduces friction, and improves cutting efficiency while controlling dust.
Applications of Wire Saw Machine for Stone Quarry
The diamond wire saw machine is widely used in:
Granite quarry block cutting
Marble quarry extraction
Limestone and sandstone quarrying
Basalt and hard rock quarry operations
Large stone block separation
Precision stone profiling and shaping
This machine is suitable for both open-pit quarries and bench cutting operations, delivering consistent performance across different geological conditions.
Advantages of Using Diamond Wire Saw Machine in Quarrying
Higher Production Efficiency – Faster cutting speed compared to conventional methods
Smooth & Accurate Cutting Surface – Reduces secondary processing cost
Environmentally Friendly – Low noise, low vibration, minimal dust
Improved Worker Safety – No blasting, controlled cutting process
Lower Overall Operating Cost – Reduced material waste and maintenance
Working Principle of Quarry Wire Saw Machine
The stone quarry wire saw machine operates by looping a diamond-embedded wire rope around the stone to be cut. Driven by a motorized flywheel system, the wire moves continuously at a controlled speed. Industrial diamond beads grind the stone surface through abrasion, while water cooling removes debris and heat. This method ensures stable cutting, high precision, and long wire life.
Technical Specifications (Customizable)
Wire diameter: 8.5 mm – 12 mm
Flywheel diameter: Optional configurations
Motor power: Customized according to quarry size
Cutting speed: Adjustable for different stone hardness
Control system: Manual or automatic control
Cooling system: Continuous water circulation
(Custom specifications available upon request)
Why Choose Toolwits Wire Saw Machine for Stone Quarry
Professional manufacturer with quarry machinery expertise
High-quality components and strict quality control
Compatible with Toolwits diamond wire ropes and accessories
Customized solutions for different quarry conditions
Reliable after-sales support and technical guidance
Toolwits wire saw machines are trusted by quarry operators worldwide for their durability, cutting efficiency, and cost-effective performance.
Wire Saw Machine For Stone Quarry Application:
Wire Saw Machine For Stone Quarry Packing and Transportation
After-sales service team
Technical Team
