Diamond Satellite

Diamond Satellite grinding tools are engineered for professionals who demand precision, speed, and consistency in material removal and surface preparation.

Send Inquiry

Description

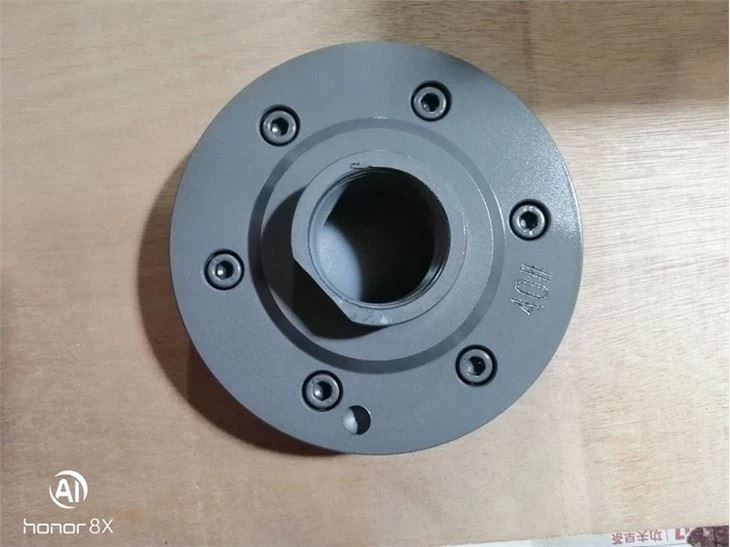

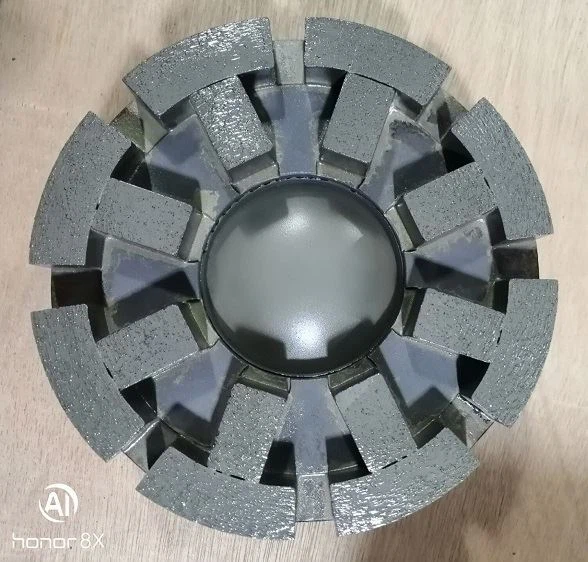

Diamond Satellite is diamond grinding wheel, used in grinding stone slabs from coarse to fine. It has different segment shapes, and different connections, but the same functions. It is mostly used in granite grinding, in the first coarse grinding procedures like diamond Fickert, and the further procedures use medium, fine and other products like resin diamond Fickert or Magnesia Abrasive and etc. to polishing and make shine.

Diamond Satellite has different segment shapes according to your preference, and different connections according to your machines. In Brazil, they use coarse grits like 30#,40#,50#, and 60# in the first several polishing heads of the polishing machine, to make the slab smooth and flat, making preparation for the next polishing processes.

Diamond satellite is a highly effective tool used for stone polishing. Its unique design allows for a smooth and even polishing experience, resulting in a stunning shine on the stone surface.

Using diamond satellite for stone polishing is an excellent way to enhance the natural beauty and color of the stone. It also helps to remove any imperfections present on the surface, such as scratches or blemishes.

One of the biggest benefits of using diamond satellite is that it is extremely durable. The tool is made of high-quality diamonds that are built to last, ensuring long-lasting results for your stone polishing needs.

Overall, diamond satellite is an excellent choice for anyone looking to polish their stones to perfection. It is effective, long-lasting, and provides stunning results that will leave you amazed. So, if you want to give your stones the perfect shine, be sure to give diamond satellite a try!

Specification	Segment size	Connection	Pcs/set
D148	45.5/36.21515	D60/6-M8	5
	241515	M45*3
	Others	Others

Diamond Satelite Polishing

Note

The above specification is only for Reference, other or special specifications can be ordered by a customer.

Diamond Satellite Grinding Tools – High-Efficiency Surface Preparation for Stone & Concrete

Diamond Satellite grinding tools are engineered for professionals who demand precision, speed, and consistency in material removal and surface preparation. Unlike traditional straight-segment or continuous-ring diamond tools, satellite grinding tools feature individual raised diamond segments ("satellites"), which allow faster cutting, superior flatness correction, and even polishing on concrete, granite, marble, and engineered stone surfaces.

These tools are ideal for industrial stone fabrication, concrete floor leveling, surface profiling, and pre-polishing tasks, providing a combination of durability and efficiency that conventional grinding tools cannot match.

How Diamond Satellite Tools Work

The unique "satellite" configuration provides strategically spaced diamond segments mounted on a steel or resin pad. As the tool rotates, each satellite makes point contact with the surface:

Aggressive material removal: The spaced satellites concentrate force, quickly removing high spots or coating residues.

Even wear distribution: Satellites reduce the likelihood of uneven grinding.

Heat reduction: Open spacing allows better airflow and cooling, extending diamond life.

This design allows satellite tools to be used effectively in both coarse grinding and fine pre-polishing stages.

Key Benefits of Diamond Satellite Grinding Tools

1. High Material Removal Rate

Satellite design increases surface contact efficiency, enabling faster leveling of floors, slabs, and stone blocks compared to traditional grinding discs.

2. Enhanced Flatness and Precision

By distributing pressure through multiple raised segments, satellite tools produce flatter, more uniform surfaces, reducing the need for repeated passes.

3. Versatility Across Materials

Ideal for concrete, marble, granite, terrazzo, and engineered stone, satellite grinding tools adapt to various hardness levels with different diamond grit grades.

4. Reduced Heat & Wear

Open satellite configuration prevents excessive heat buildup, maintaining diamond integrity and prolonging tool life, even during long grinding sessions.

5. Optimized for Modern Machines

Satellite tools are compatible with planetary grinders, single-disc machines, and satellite grinding machines, allowing professionals to leverage the tool across multiple applications.

Typical Applications

Concrete Floor Preparation: Flattening, leveling, and smoothing before polishing.

Stone Slab Calibration: Adjusting granite or marble thickness and removing high spots.

Surface Profiling: Removing coatings, adhesives, or epoxy residues.

Pre-Polishing Operations: Preparing surfaces for finer grit polishing and final finish.

Industrial Stone Fabrication: Ensuring precision before edge polishing or assembly.

Satellite tools are essential wherever consistent, high-quality surface preparation is critical.

Technical Features

High-Grade Diamond Abrasive: Long-lasting and capable of cutting through both soft and hard materials.

Variable Grit Options: From coarse for heavy material removal to fine for pre-polish stages.

Dual or Multi-Layer Satellites: Some pads feature multiple layers of diamond grit for versatility across grinding stages.

Robust Pad Base: Steel or resin bases provide stability and consistent rotation speed.

Water or Dry Usage: Depending on design, satellite tools can operate in wet or dry conditions.

These features ensure precision, longevity, and superior surface results.

How to Select the Right Diamond Satellite Tool

Material Type: Concrete, granite, marble, or engineered stone.

Desired Finish: Leveling, smoothing, or pre-polishing.

Machine Compatibility: Ensure proper pad diameter, mounting type, and rotational speed compatibility.

Grit Selection: Start coarse for high spots, progress to finer grit for pre-polish.

Operational Environment: Wet or dry grinding, indoor vs. outdoor, or heavy-duty industrial use.

Proper selection ensures efficient grinding, uniform surface finish, and longer tool life.

Advantages Over Conventional Diamond Pads

Feature	Diamond Satellite Tool	Traditional Diamond Pad
Material Removal	High	Moderate
Surface Flatness	Excellent	Good
Heat Generation	Low	High
Versatility	Multi-stage grinding	Often single-stage
Finish Quality	Consistent & smooth	May require extra passes
